Case Study
Hotel solves its legionella problem with chloriDOS iOX®
Combatting legionella and other bacteria in hotel water systems has never been more challenging. Yet with chloriDOS®, it can be easy to solve.
iOX®-1 Modular
chloriDOS® iOX® technology automatically draws and mixes precise amounts of acid and chlorite, under vacuum. The reacted chlorine dioxide solution is homogenised volumetrically with cold water, prior to dispensing as a dilute solution into the integral 8 litre product tank.

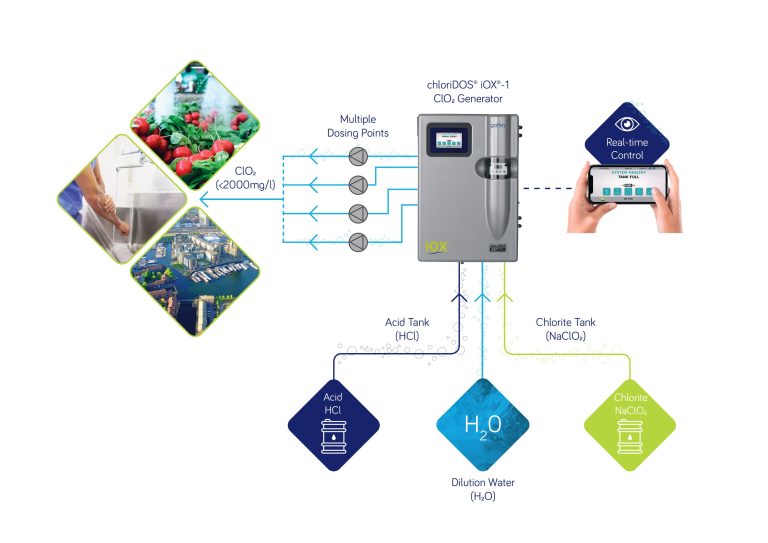

A single chloriDOS® iOX®-1 Modular chlorine dioxide generator system can treat up 120m³/h water volumes (@0.5ppm/m³) and up to 4 injection points (dosing pumps required), providing an extremely cost-effective solution for multiple water circuits in large public buildings and industrial processes.
Features:
- Single lockable unit, IP65
- Power supply: 110V to 230V (50-60Hz), 60W
- Safe handling of chemical reagents under vacuum
- Batch dilution volumetrically controlled
- Precursor chemical suction volumetrically controlled
- Simple, low maintenance frequency
Specifications
| Treated water volume (@ 0.5mg/L) | Up to 120m³/h |
|---|---|
| Up to 32kgal/h | |
| Capacity (kg/day ClO₂) | 0.12 - 1.5 |
| Capacity (lbs/day ClO₂) | 0.26 - 3.2 |
| Concentration (mg/L ClO₂) | 500-2000 |
| Rated Power (VA) | 60 |
| Power Supply (V~) | 110-230 |
-
Reporting
Information is always at your fingertips and easy access to the iOX system lets you know that it is in perfect working order at all times.
-
Compact footprint
iOX units are housed in a sleek case and made from durable, chemical resistant materials.
-
Precise reaction chemistry
A fail-safe vacuum that utilises volumetric reagent measuring and dilution water control.
-
Versatile connectivity
Monitors and alerts on a wide
range of site conditions, including reagent volume usage, site water metre readings, status, and fault diagnosis. -
User-friendly interface
Low frequency maintenance tasks with three tier access for Operators, Site Technicians and
Service Engineers. -
Patented reaction technology
Safer, more accurate dosages and lower strength ClO₂ solutions.
